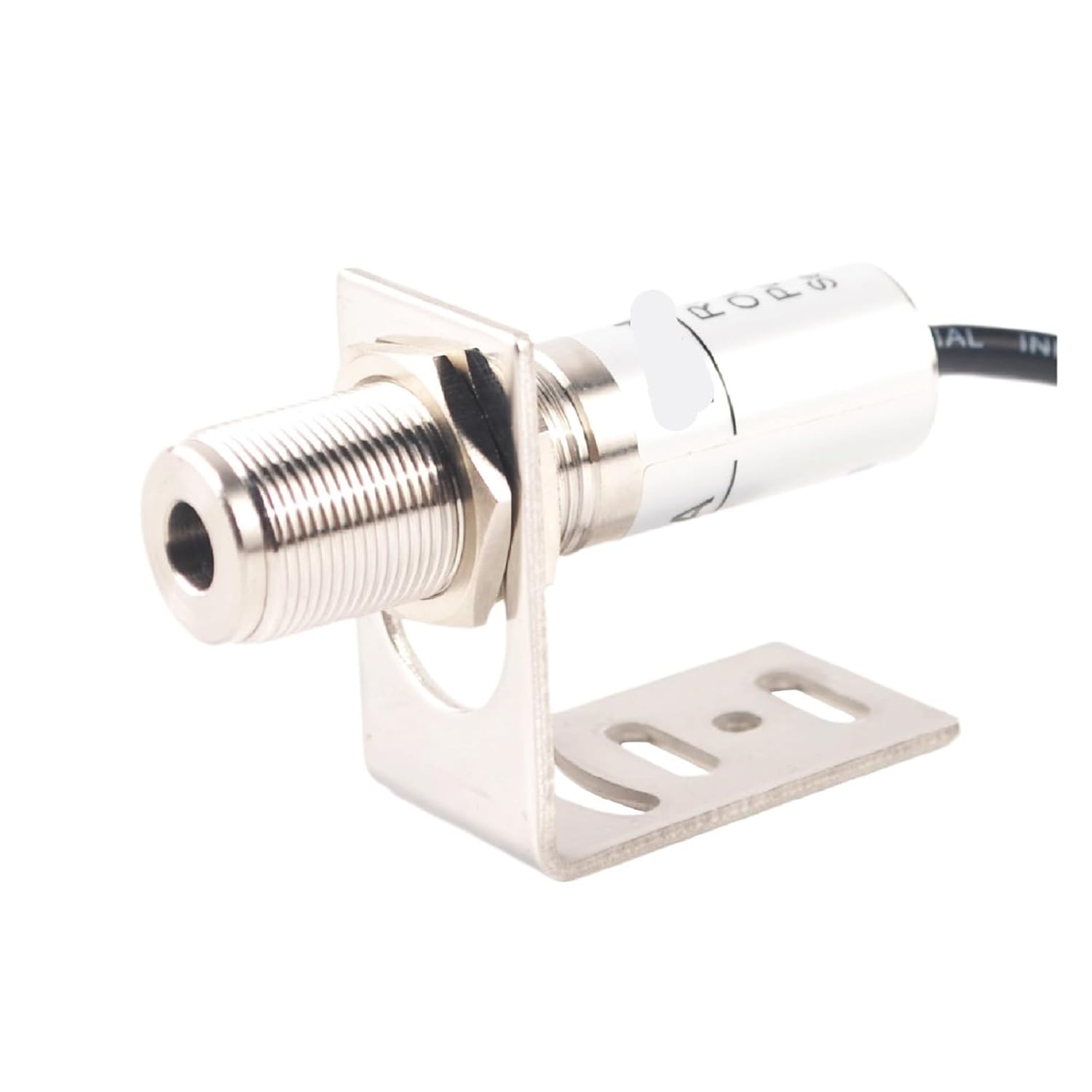

RS485 Output Compact Infrared Thermometer Non-Contact Temperature Sensor High Precision Industrial Transmitter
Product details
| Management number | 222321863 | Release Date | 2026/05/04 | List Price | $58.61 | Model Number | 222321863 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
.Temperature Range:0-100°C/0-200°C/0-300°C/0-500°C/0-600°C(etc).Signal Output:RS485, 4-wire system.Thread Connection:M18*1 (Thread length: 32mm).Product Lengths:68mm.Housing Material:304 Stainless Steel.Cable Length:1.5m (Standard).Protection Level:IP65Customizable Options:.Temperature Range: -30~1300(eg:-20-100/-20-200/-20-300/-20-500/-20-600/0-800/0-1000°C)Voltage:Customizable (12-36VDC, 5-36VDC).Signal Output:4-20mA, 0-5V, 0-10V, .Cable Length:Customizable (e.g., 5m, 10m)Accessories: Intelligent display, control instruments, wind-cooling shield, large screen displays, various mounts (adjustable, three-dimensional), aimers (single and dual), and sound-light alarms.(Accessories need to be purchased separately and are not included by default.)Please confirm the temperature range and output signal before placing an order. Protection Level : IP65Spectral Range : 8~14mAmbient Temperature : 0~60°CTemperature Range : -30~1300°C (customizable, note required)Housing Material : 304 Stainless SteelResponse Time : 200ms (customizable to 50ms)Cable Length : 1.5m standard (customizable)Power Supply : 12-36VDCOutput Signal : 4-20mA, 0-5V, 0-10V, RS485Dimensions : M18*1,68mm
- YZHATDH RS485 Output Compact Infrared Thermometer Non-Contact Temperature Sensor High Precision Industrial Transmitter
| Color | 0-300 RS485 |
|---|---|
| Model | YZHATDH |
| Brand Name | YZHATDH |
| Model Name | YZHATDH |
| Item Length | 1 Inches |
| Part Number | YZHATDH |
| Display Type | Analog |
| Manufacturer | YZHATDH |
| Outer Material | paper |
| Specification Met | UL |
| Additional Features | Alarm |
| Included Components | Battery |
| Age Range Description | Adult |
